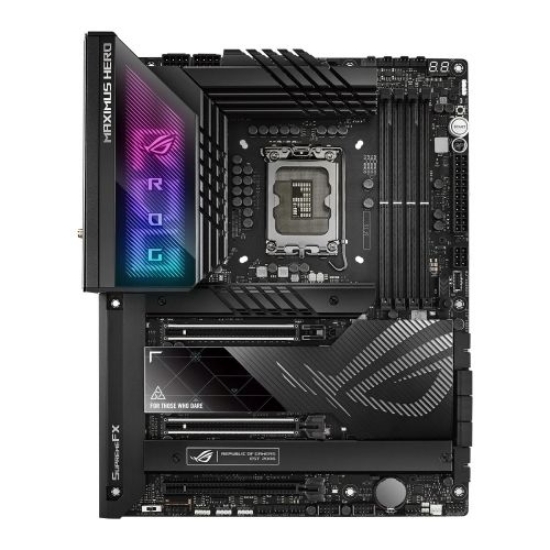

Asus ROG MAXIMUS Z790 HERO, Intel Z790, 1700, ATX, 4 DDR5, HDMI, 2 Thunderbolt, Wi-Fi 6E, 2.5G LAN, PCIe5, Hyper M.2 Card, RGB, 5x M.2

Psyche up and engage the Hero overclocker in you, with onboard intelligence to scan, predict, and adapt CPU performance parameters, and tools to command and track system vitals.







Today's CPU architectures place incredible demands on motherboard power design by transitioning from deep power-saving modes, going from lower-power mode to full load in an instant. The latest ROG VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal performance.









Comprehensive memory tuning options are the cornerstone of ROG motherboards. With the ROG Maximus Z790 Hero, you can extract all of the potential out of your DDR5 modules, regardless of if they're from an extreme-speed kit or an entry-level set that would otherwise be locked.









A VRM heatsink on the MOSFETs and chokes is connected to the aluminum I/O cover via an embedded heatpipe to increase mass and surface area for dissipation.



Large aluminum heatsinks provide extensive surface area to cool mounted M.2 drives, and each of the three onboard slots has a dedicated backplate for additional heat dissipation.



Each thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink. For future maintenance, a replacement thermal pad can also be found in the package.



A plate of electro-galvanized steel strengthens the spine of the ROG Maximus Z790 Hero to prevent bending.



A dedicated heatsink draws heat away from the chipset to maintain optimum operating temperature.











An extensive array of headers line the ROG Maximus Z790 Hero for precise cooling control and monitoring.



Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or UEFI.



In addition to the pair of CPU fan headers, the Maximus Z790 Hero features four chassis headers, and each supports auto-detection of PWM or DC fans.



An additional PWM/DC fan header offers dedicated control of self-contained water-cooling setups.







Dual water-temperature headers and a flow-rate header feed information straight into Armoury Crate, allowing you to track coolant temperatures and the flow rate of the entire loop.



A dedicated header can supply over 3 amps to a high-performance PWM or DC water pumps.



A dedicated header enables monitoring of temperatures at the input/output points of any component.



A dedicated header enables constant monitoring of flow rate throughout the entire loop.







The ROG Maximus Z790 Hero bears the same LGA 1700 socket as the Z690 models, so it is backward compatible with all coolers that supported the previous generation, including all AIO offerings from ASUS and ROG.









Fully embracing the new standard, the ROG Maximus Z790 Hero offers abundant Gen 5 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.









Each port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. Both ports can be employed for up to two external 4K displays, and PCIe bandwidth extends to up to 32 Gbps.



USB 3.2 GEN 2X2 TYPE-C® FRONT-PANEL CONNECTOR WITH QUICK CHARGE 4+

USB 3.2 Gen 2x2 adds an additional lane that can boost Type-C data transfers with speeds of up to 20 Gbps. The port also features Quick Charge 4+ technology that can quickly charge devices up to 60W*.











Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.





Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.









Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.









This utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls.









GameFirst VI optimizes networking performance by allocating bandwidth in real time based on application usage scenarios and corresponding learning algorithms. The latest update includes dedicated support for GeForce NOW to ensure the lowest latency possible during intense game streaming sessions.









The AI Suite 3 dashboard contains a set of intuitive controls that boost CPU performance while maintaining system stability.









The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.











Up your game with complementary Aura Sync enhanced aesthetics, featuring preset lighting effects that can be easily synchronized across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.











Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.



Through the pre-loaded DTS® Sound Unbound™ app, the ROG Maximus Z790 Hero envelops you in rich audio, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. By exploiting Microsoft spatial sound technology, DTS Sound Unbound creates an audial 3D space — putting you right in the middle of the soundscape, where you can sense the location and direction of every gunshot, footstep, or other sound in your virtual environment.









Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.



You can use Armoury Crate to download drivers, tools, and user manuals, and to register products. It also taps into a special news feed that connects you to the global ASUS gaming community.









The ROG Maximus Z790 Hero includes a one-year AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers
