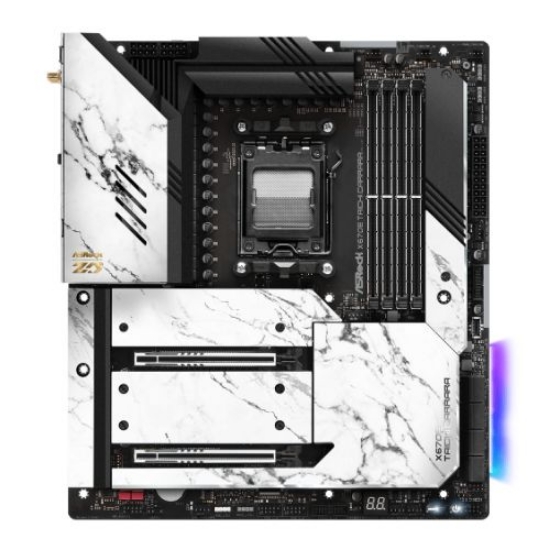

Asrock X670E TAICHI CARRARA, AMD X670, AM5, EATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 6E, 2.5G LAN, PD 3.0 27W, PCIe5, RGB, 4x M.2, 12cm Carrara Fan
Asrock X670E TAICHI CARRARA, AMD X670, AM5, EATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 6E, 2.5G LAN, PD 3.0 27W, PCIe5, RGB, 4x M.2, 12cm Carrara Fan
Solid as a Rock! Taichi Carrara resembles the high strength as well as the esthetic of Carrara marble, the key elements while developing this motherboard.
- Supports AMD Ryzen™ 7000 Series Processors
- 24+2+1 Phase Power Design, SPS for VCore+GT
- 4 x DDR5 DIMMs, supports up to 6600+(OC)
- 2 PCIe 5.0 x16
- Graphics Output Options: 2 USB4 Type-C, 1 HDMI
- Realtek ALC4082 5.1 CH HD Audio Codec,
- ESS SABRE9218 DAC, WIMA Audio Caps
- 1 Blazing M.2 (PCIe Gen5x4),
- 1 Hyper M.2 (PCIe Gen4x4 & SATA3),
- 2 Hyper M.2 (PCIe Gen4x4),
- 8 SATA3
- 2 USB4 Type-C (Rear),
- 1 USB 3.2 Gen2x2 Type-C (Front),
- 5 USB 3.2 Gen2 Type-A (Rear),
- 7 USB 3.2 Gen1 (3 Rear, 4 Front)
- Killer 2.5G LAN
- Killer 802.11ax Wi-Fi 6E + Bluetooth
Optimized VRM Design
SPS (Smart Power Stage)Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
24+2+1 Power Phase DesignFeaturing sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Server Grade Low Loss PCB
The server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.
8 Layer PCB design
The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.
12cm Carrara Edition Cooling Fan
Replace the rear fan to give you a consistent carrara style appearance with motherboard.
- 800 - 2500 RPM
- 76.21 CFM
- 2 ball bearing
Composite VRM Heatsink
It is equipped with a composite VRM heatsink combining a cooling fan, bigger aluminum sink and heat pipe for maximum heat dissipation.
DDR5 Memory with Protection Circuit
Reinforced DIMM Slot
The reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal, with this superior revolutionary design, it is able to dramatically overclock DRAM module up to insane frequency.
DIY Friendly DesignDue to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.
PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
Blazing OC Tuner
The Blazing OC Tuner allows AM5 CPU to switch between OC mode and PBO(Precision Boost Overdrive) mode when the CPU current hits threshold. Anything above current threshold will engage manual OC mode; if below current threshold then will engage Precision Boost Overdrive mode. This idea is to combine overclocking on all cores and automatic boost on a single core to get the best performance out of your CPU. There is no need to enter BIOS to setup up, you can modify all the settings on time under OS.
KiLLER Networking
KiLLER E3100 + AX1675
The Killer Ethernet controller is designed specically for competitive gamers and performance-hungry users, this motherboard comes with both Killer E3100 2.5G Ethernet & WiFi 6E solution, the enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications.
KiLLER Doubleshot ProKiller DoubleShot Pro allows the use of both the Killer Wireless and Killer Ethernet interfaces work at the same time which will give the end user max throughput as high as 4.9 Gbps, it automatically utilizes the fastest network connection for high priority traffic, this ensures the highest priority traffic will always be put on the fastest and most reliable link.
Benefits- Speed: DoubleShot Pro Technology delivers the maximum speed and throughput possible for your computer by allowing your computer to use all of your network adapters at the same time.
- Intelligence: The Killer Prioritization Engine to automatically classify and prioritize high priority traffic like online games, streaming video, and high quality audio to be handled by the systems fastest network interface. This will provide users with a higher quality experience with fewer interruptions.
- Maximum Control: Utilize the Killer Control Center 2.0 to see and manage which network connection your applications are using. Set limits using Visual Bandwidth Control or shut them down completely with application blocking, so they don’t interfere with higher priority apps
USB4 Type-C
Enhanced USB4 Type-CUSB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and supports up to 9V@3A 27W with the next generation PD 3.0 for superfast charging!
Fast Charging TechnologyEnjoy the superfast charging rate, up to 9V@3A 27W with the next generation PD 3.0!
High Definition Sound Effects
ESS SABRE9218 DACEmbrace the audio stunning performance with ES9218 SABRE DAC!
- True Hi-Fi Audio. No distorted digital signal
- 130dB SNR
- 112dB THD+N and supports higher impedance up to 600 Ohmheadphone
WIMA Audio CapOptimized for high end audio applications! Deliver crystal and balanced sound to satisfy even the pickiest audiophile.
Nahimic AudioWhether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
Enhance Communication QualityThe Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
- Static Noise Suppression
- Echo Cancellation
- Lateral Sound Cancellation
- Voice Stabilizer
Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.
Lightning Gaming Ports
Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!
Polychrome RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
