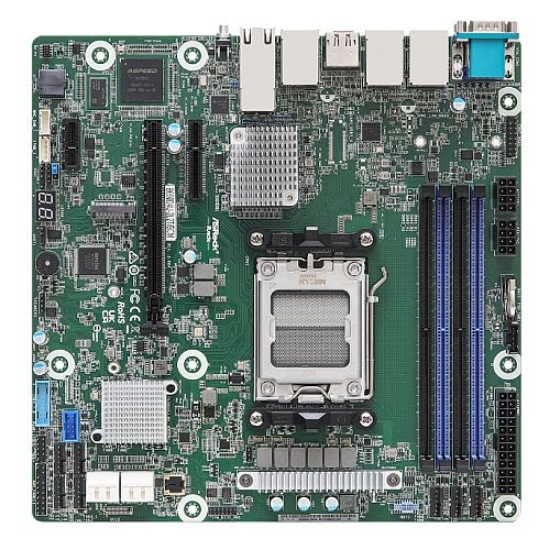

Asrock Rack B650D4U-2L2T/BCM, AMD B650E, AM5, Micro ATX, 4 DDR5, HDMI, DP, 2x 10G LAN, IPMI Remote Management, PCIe5, 1x M.2

Be the first to review this product

Manufacturer: ASROCK_RACK

B650D4U-2L2T/BCM

Micro-ATX (9.6"x 9.6")
Support AMD Ryzen 7000 series Processors
4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
1 PCIe5.0 x16, 1 PCIe5.0 x4, 1 PCIe4.0 x1
Supports 1 M.2 (PCIe5.0 x4)
2 RJ45 (10GbE) by Broadcom BCM57416
2 RJ45 (1GbE) by Intel® i210
4 SATA 6Gb/s
1 HDMI, 1 DisplayPort
Remote management (IPMI)

System BIOS

BIOS Type:

AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM

BIOS Features:

Plug and Play, ACPI 6.4 compliance wake up events, SMBIOS 3.5

Hardware Monitor

Temperature:

CPU, DDR, MB, Card Side, Chipset, 10G LAN, M.2 slot

Fan:

Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)

Voltage:

VOLT_3VSB, VOLT_5VSB, VOLT_P0_VCORE, VOLT_P0_VSOC, VOLT _VMEM, VOLT _VMISC, VOLT_1.8V_PT21, VOLT_VSUS10, VOLT_VDD10, VOLT_V10_PHY_DIG, VOLT_VDD_1P8, VOLT_MD_VDDO, VOLT_BAT, VOLT_3V, VOLT_5V, VOLT_12V

Environment

Temperature:

Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C

Humidity:

Non operation humidity: 20% ~ 90% ( Non condensing)
