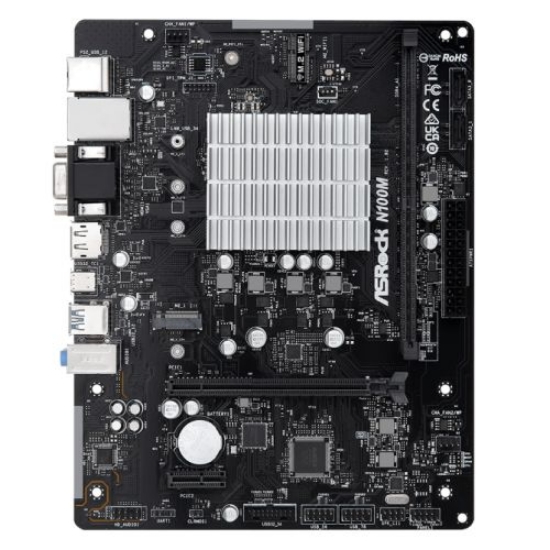

Asrock N100M, Integrated Intel Quad-Core N100, Micro ATX, 1 DDR4, VGA, HDMI, DP, Fanless Design, 1x M.2

Manufacturer: ASRock

N100M

Intel® Quad-Core Processor N100 (up to 3.4 GHz)
Supports 1 DDR4 DIMM
1 PCIe 3.0 x16 (x2 mode), 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi
Graphics Output Options: D-Sub, HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec
2 SATA3, 1 M.2 (PCIe Gen3x2)
1 USB 3.2 Gen2 Type-C (Rear), 4 USB 3.2 Gen1 (2 Rear, 2 Front)
Realtek Gigabit LAN
Supports ASRock Auto Driver Installer

Intel® Alder Lake-N N100 Processor

The newest Intel® N100 processor, built on the Gracemont CPU microarchitecture using the Intel® 7 process, features 4 E-cores with a turbo frequency of 3.4GHz and Intel® UHD Graphics with 24 EUs. It is suitable for affordable, entry-level computing.

3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.

Fanless Design

The CPU is covered by a specially designed heatsink which allows advanced heat dissipation. Utilizing an ultra quiet fanless design, this ASRock motherboard provides the most silent computing environment.

AV1 Decoding + 4K

Supports 10-bit HEVC & VP9 encoding/decoding, hardware-accelerated AV1 decoding, and a max. resolution of up to 4K x 2K 60Hz.

USB 3.2 Gen1 Type-C

USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.

M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.

Auto Driver Installer

No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.

step1: Install Auto Driver Installer

step2: Update drivers needed

step3: Done!
