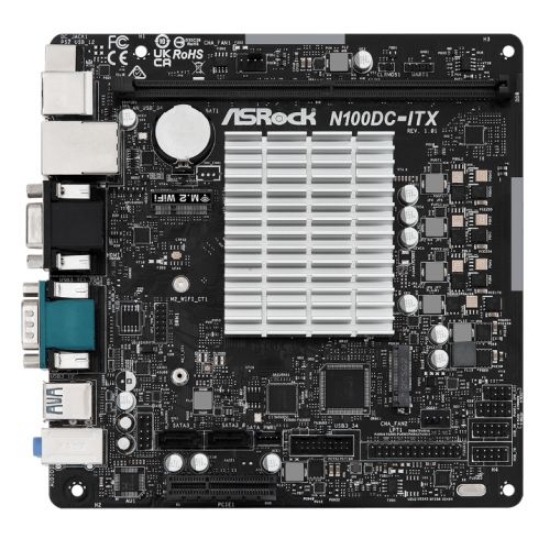

Asrock N100DC-ITX, Integrated Intel Quad-Core N100, Mini ITX, 1 DDR4, VGA, HDMI, DC Jack, Fanless Design, 1x M.2

Manufacturer: ASRock

N100DC-ITX

Intel® Quad-Core Processor N100 (up to 3.4 GHz)
Supports 1 DDR4 DIMM
1 DC Jack (Compatible with the 19V power adapter)
1 PCIe 3.0 x4 (x2 mode), 1 M.2 Key E for WiFi
Graphics Output Options: D-Sub, HDMI
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
2 SATA3, 1 M.2 (PCIe Gen3x2)
4 USB 3.2 Gen1 (2 Rear, 2 Front)
Realtek Gigabit LAN
Supports ASRock Auto Driver Installer

Intel® Alder Lake-N N100 Processor

The newest Intel® N100 processor, built on the Gracemont CPU microarchitecture using the Intel® 7 process, features 4 E-cores with a turbo frequency of 3.4GHz and Intel® UHD Graphics with 24 EUs. It is suitable for affordable, entry-level computing.

DC-In Design

The DC-In jack is compatible with 19V power adapters. Without a bulky power supply unit, this unique design allows this motherboard to fit in compact chassis.

*Power adapter is not included.

Fanless Design

The CPU is covered by a specially designed heatsink which allows advanced heat dissipation. Utilizing an ultra quiet fanless design, this ASRock motherboard provides the most silent computing environment.

AV1 Decoding + 4K

Supports 10-bit HEVC & VP9 encoding/decoding, hardware-accelerated AV1 decoding, and a max. resolution of up to 4K x 2K 60Hz.

M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.

*Wi-Fi module is not included.

Auto Driver Installer

No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.

step1: Install Auto Driver Installer

step2: Update drivers needed

step3: Done!

This product is sold out
