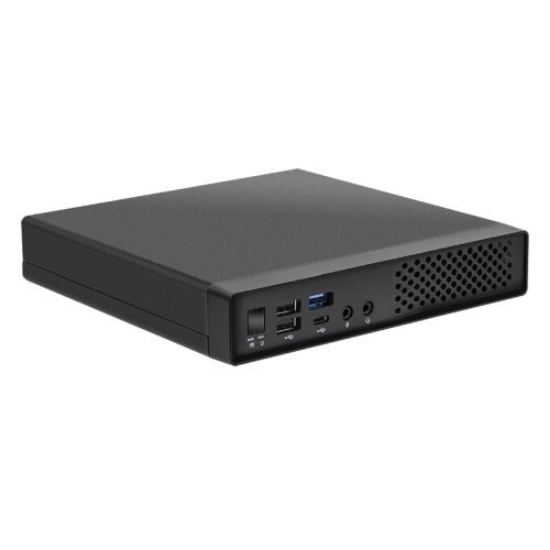

Asrock Jupiter H610 Mini Desktop Barebone PC, LGA1700 (H610), DDR4 SO-DIMM, 2.5", M.2, HDMI, 2x DP, USB-C, COM Port, VESA - No CPU, RAM, HDD or O/S

Be the first to review this product

Manufacturer: ASRock

SKU: PCAS-JUPITERH610

GTIN: 4710483943171

Delivery date: 3-5 days

£278.48

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Tiny but Awesome

Jupiter 600 series features the flexibility and expandability in a compact size suited to a wide range of applications such as office, retail, healthcare, transportation and industry. With support for 13th Gen Intel Core processors up to 65 watts, dual DDR4 3200MHz memory, and comprehensive connectivity, Jupiter 600 series provides powerful performance to meet user's needs.

Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700), up to 65W
Dual DDR4-3200MHz SO-DIMMs, up to 64GB
Integrated thermal solution
Multi Video Outputs:2 x DisplayPort (co-lay D-Sub), HDMI
2 x USB 3.2 Gen1 Type-C, 5 x USB 3.2 Gen1 Type-A
2 x USB 2.0
Support RS232 (COM) port
2 x M.2 (2280) slot for SSD (1 x PCIe Gen4 x4)
M.2 (2230) slot for Wi-Fi
Optional 2W Speaker
Optional TPM 2.0 IC
179 x 178 x 34mm / 1.07L

Proprietary Thermal Solution

Copper based heatsink
High efficiency blower

Three-storage Design*

- 1 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive

- 1 x Hyper M.2 (2280) - PCIe Gen4 x4

- 1 x Ultra M.2 (2280) -PCIe Gen3 x4

*JPT 600 series cannot support 2.5" HDD and 2 x M.2 SSD at the same time. If you want to install 2 x M.2 SSD, please remove HDD bracket and use fanless Heatsink (optional accessory).

Optional Wi-Fi Module*

Jupiter H610 supports optional Intel M.2 Wi-Fi & Bluetooth Module:

Intel AX-210

Intel AC-3168

*Sold separately

Rich Connectivity

Comprehensive connectivity with nine USB ports including a USB 3.2 Gen1 Type-C on each front and rear panel, three displays and a COM port means Jupiter 600 series is ideal for use to business, POS and digital signage.

Enhanced Productivity

With support for two DisplayPort and one HDMI connectors at the same time, Jupiter 600 series lets you increase your productivity at work.

Security Solutions

Chassis Intrusion
Get alert if Jupiter's chassis has been opened.
Kensington Lock Slot
Protect Jupiter from theft.
TPM 2.0 (sold separately)

VESA Mount

Let you mount Jupiter behind the monitor easily.
