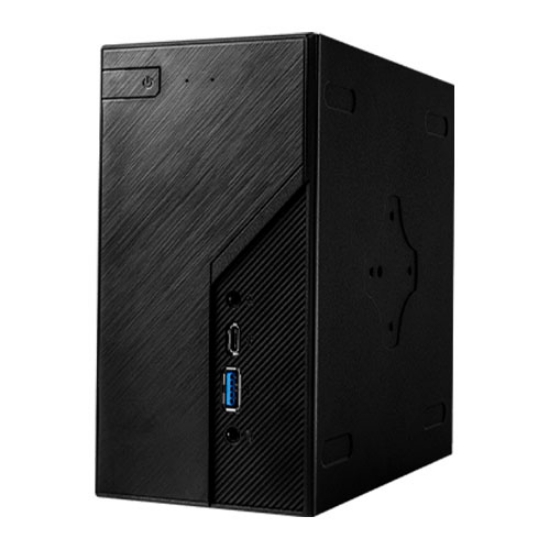

Asrock DeskMini B660 Barebone PC, Mini ITX, LGA1700 (B660), DDR4 SO-DIMM, 2.5" SATA, M.2, VGA, HDMI, DP, USB-C - No CPU, RAM, HDD or O/S

Be the first to review this product

Manufacturer: ASRock

SKU: PCAS-DESKMINIB660

GTIN: 4710483938634

Delivery date: 3-5 days

£242.90

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

DeskMini B660

Supports 12th Gen Intel Core Processors (LGA1700), up to 65W
Dual DDR4-3200MHz SO-DIMMs, up to 64GB
Multi Video Outputs:2 x DisplayPort, HDMI & D-Sub
1 x USB 3.2 Gen2x2 Type-C port (20 Gb/s)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (with USB Type-C Alt Mode)
1 x USB 3.2 Gen2 Type-A port (10 Gb/s)
1 x Blazing M.2 (PCIe Gen5 x4) Slot
1 x Hyper M.2 (PCIe Gen4 x4) Slot
2 x 2.5" HDD/SSD with RAID 0/1
1 x M.2 Key-E for Wi-Fi

Mini Size, Mighty Power

DeskMini B660 adopts LGA1700 CPU socket which supports the latest 12th Gen Intel Core Processors for delivering ultimate computing performance within a tiny PC.

Dr.MOS

The integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Premium 60A Power Choke

Compared to traditional chokes, ASRock' premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Heatsink on MOSFET

ASRock DeskMini B660 features with Aluminum MOSFET Heatsink providing great heat dissipation to ensure system's stability in loading.

Dual Channel DDR4-3200

DeskMini B660 supports Dual Channel DDR4-3200MHz high-speed memory, up to 64GB.

USB Alternate Mode

A USB 3.2 Gen2 Type-C with alternate mode is available on the rear I/O, offering a high-resolution DisplayPort signal, an incredible 60-watt power delivery, and a 10Gbps data transfer rate.

USB 3.2 Gen2x2 Type-C

The latest USB 3.2 Gen2x2 Type-C delivers up to 20Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

Rapid USB Connectivity

DeskMini B660 supports a USB 3.2 Gen2 Type-A in the front panel, delivering 10Gbps speedy data transfer rate. In addition, DeskMini B660 brings 4 x USB Type-A ports on the rear I/O for all of your peripherals.

Optane Memory Technology

The Supports on Intel Optane memory technology and Intel Optane storage technology redefines a new standard of high performance and responsiveness.

High Speed M.2 Solution

DeskMini B660 offers two M.2 2280 slots. One of them can even support the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation. All of your apps and programs will load with lightning speed which makes you working or gaming faster than ever.

Mini Home Data Center

DeskMini B660 supports RAID 0/1 function! Build mini data center at home!

Quadruple Displays

Up to four video outputs can be used simultaneously for productivity and multitasking. DisplayPort 1.4 ports allow you to enjoy Ultra HD content on an 8K monitor or TV.

Auto Driver Installer

No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
