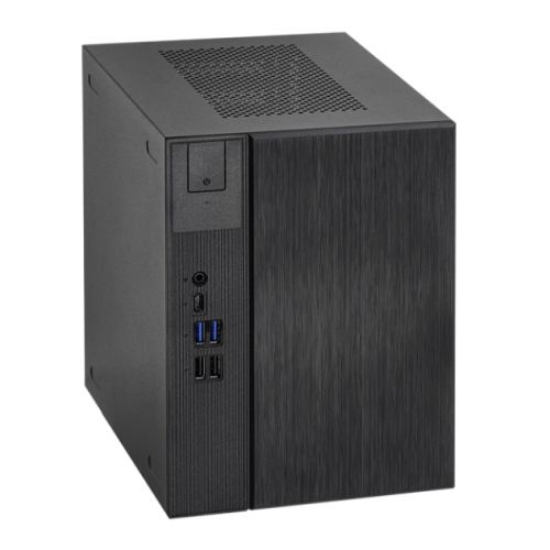

Asrock DeskMeet B660 Barebone PC, Mini ITX, LGA1700 (B660), DDR4 DIMM, 3x SATA, 2x M.2, VGA, HDMI, DP, USB-C, 500W PSU - No CPU, RAM, HDD or O/S

Be the first to review this product

Manufacturer: ASRock

SKU: PCAS-DESKMEETB660

GTIN: 4710483938924

Delivery date: 3-5 days

£290.34

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

With just 8 liters of volume, DeskMeet is a powerful and compact desktop PC designed to deliver the best experience for daily computing, gaming, home entertainment, content creation and business. It supports the desktop processor and the graphics card under 20 cm long. This chassis can stand either vertically or horizontally to fit into any workspace and give users a neat and tidy desk space.

Supports 12th Gen Intel Core™ Processors (LGA1700)
Supports MAX Height <54mm CPU Cooler
Supports 4 x DDR4-3200MHz DIMMs, up to 128GB
1 x PCIe 4.0 x16
Graphics Output Options: DisplayPort, HDMI & D-Sub
3 x SATA3
1 x Hyper M.2 (PCIe Gen4 x4 & SATA3)
1 x Hyper M.2 (PCIe Gen4 x4)
1 x USB 3.2 Gen1 Type-C Port
4 x USB 3.2 Gen1 Type-A port (2 Front, 2 Rear)
4 x USB 2.0 Type-A port (2 Front, 2 Rear)
1 x M.2 Key-E for Wi-Fi
500W power supply (80+ Bronze)
8 Liter compact size

Processing Power

DeskMeet B660 supports 12th Gen Intel® Core™ Processors that delivers ultimate performance for efficient work and demanding applications.

Incredible Memory Performance

Up to 128GB of four DIMM memory clocked at 3200MHz, DeskMeet provides a faster multitasking experience and a responsive system.

Heatsink

DeskMeet features a dedicated MOSFET heatsink that allows it to dissipate excess heat and operate at the optimum temperature for reliable performance.

Ready for Dual slot Graphics Card

DeskMeet can fit a dual slot graphics card (up to 20cm or 7.87 inches) which is an option for those requiring advanced graphics performance for heavy visual tasks, such as gaming, 3D rendering and video editing.

Efficient Airflow Design

DeskMeet features air vents at the top, left side and bottom of the chassis, allowing for maximum heat removal and constant airflow.

In addition, the custom intake fan inside the power supply can pull in cool air to dissipate heat from the CPU and VRM. Such optimized thermal design enables the system to run cool and quiet without compromising performance.

Expand the Configurations Potential

With a flexible and expandable design, DeskMeet can be easily configured to meet users now and future needs. The mounting holes on top of the frame provide four options, 1 x 3.5” HDD, 2 x 2.5” SSD/HDD, 1 x 120mm fan or 1 x single radiator liquid cooler.

Up to Five Storages

DeskMeet B660 provides up to 5 storages including 3 x SATA 6Gb ports and 2 x Hyper M.2 slots with support of PCI Express 4.0 standard to speed up loading time for all your favorite apps.

M2_1 M.2 (2280) –PCIe Gen4 x4 & SATA3

M2_2 M.2 (2280) –PCIe Gen4 x4

3 x SATA 6Gb SSD/HDD

Easy to set up and upgrade

DeskMeet adopts a drawer chassis design so users can pull out the motherboard tray after removing one screw at the bottom. To keep up the system in the latest status, all the components can also be installed or upgraded with ease. DeskMeet provides a simple setup experience to save time and effort.

Keep Your 3.5” HDD

DeskMeet can be equipped with 2 x 3.5” HDD at most. When users replace the aged tower PC with DeskMeet, they can install their old 3.5” HDD to preserve personal data.

ATX Power Supply

DeskMeet includes an internal 500W 80 Plus Bronze power supply with custom length cables to save space and make cable management easier. The fan in the power supply will draw in the cool air to CPU cooler which is the best way to increase airflow and ensure DeskMeet operates at its utmost efficiency of heat dissipation.
