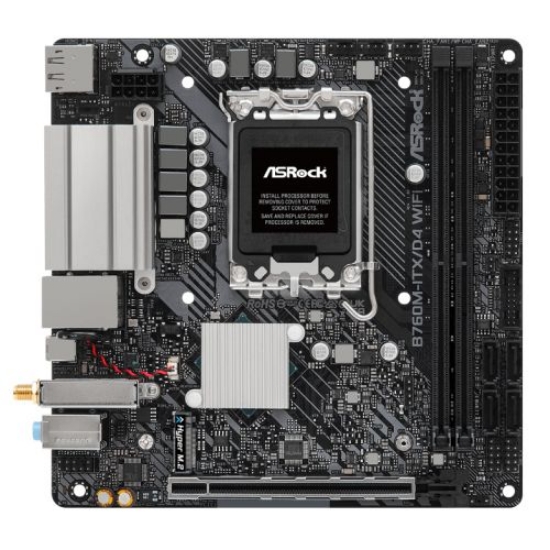

Asrock B760M-ITX/D4 WIFI, Intel B760, 1700, Mini ATX, 2 DDR4, HDMI, DP, Wi-Fi 6E, GB LAN, PCIe4, 1x M.2

Manufacturer: ASRock

B760M-ITX/D4 WiFi

Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
5+1+1 Power Phase, Dr.MOS for VCore+GT
Supports DDR4 5333MHz (OC)
1 PCIe 4.0 x16
Graphics Output Options: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3, 1 Hyper M.2 (PCIe Gen4x4)
1 USB 3.2 Gen2x2 Type-C (Rear)
4 USB 3.2 Gen1 (2 Rear, 2 Front)
6 USB 2.0 (2 Rear, 4 Front)
Realtek 1G LAN, 802.11ax (WiFi 6E) + Bluetooth
Supports ASRock Auto Driver Installer

Optimized VRM Design

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

5+1+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

6 Layer PCB

The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!

Reinforced Steel Slot [PCIe 4.0 Version]

The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:

- Extra anchor points

- Stronger latch

- Ensure signal stability

- Make sure heavy graphics cards to be well-installed.

Nahimic Audio

Audio That Matters

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Enhance Communication Quality

The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.

Sound Tracker

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Works on any devices!

Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

High Speed M.2 Solution(PCIe Gen4 x4)

Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Wi-Fi 6E 802.11ax

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

Rear USB 3.2 Gen2x2 Type-C

The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

Auto Driver Installer

No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
