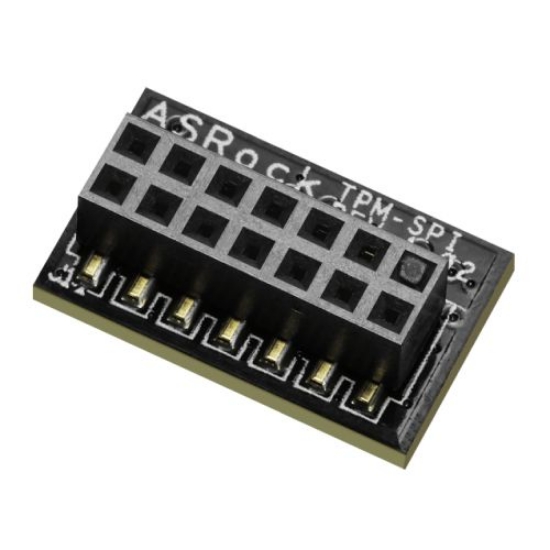

Asrock (TPM-SPI) TPM Module, 14-1 TPM Header, SPI Interface, Family 2.0, Level 00, Revision 01.16

Compliant to TPM Main Specification, Family "2.0", Level 00, Revision 01.16

• SPI interface
• Meeting Intel TXT, Microsoft Windows and Google Chromebook certification criteria for successful platform qualification
• Random Number Generator (RNG) according to NIST SP800-90A
• Full personalization with Endorsement Key (EK) and EK certificate
• Standard (-20..+85°C) and Enhanced temperature range (-40..+85°C)
• PG-VQFN-32-13 or PG-UQFN-32-1 package
• Pin compatible to OPTIGA™ TPM SLB 9670 TPM1.2 version
• Optimized for battery operated devices: low standby power consumption (typ. 110µA)
• 24 PCRs (SHA-1 or SHA-256)
• 7206 Byte free NV memory
• Up to 3 loaded sessions (TPM_PT_HR_LOADED_MIN)
• Up to 64 active sessions (TPM_PT_ACTIVE_SESSIONS_MAX)
• Up to 3 loaded transient Objects (TPM_PT_HR_TRANSIENT_MIN)
• Up to 7 loaded persistent Objects (TPM_PT_HR_PERSISTENT_MIN)
• Up to 8 NV counters
• Up to 1 kByte for command parameters and response parameters
• 1280 Byte I/O buffer
